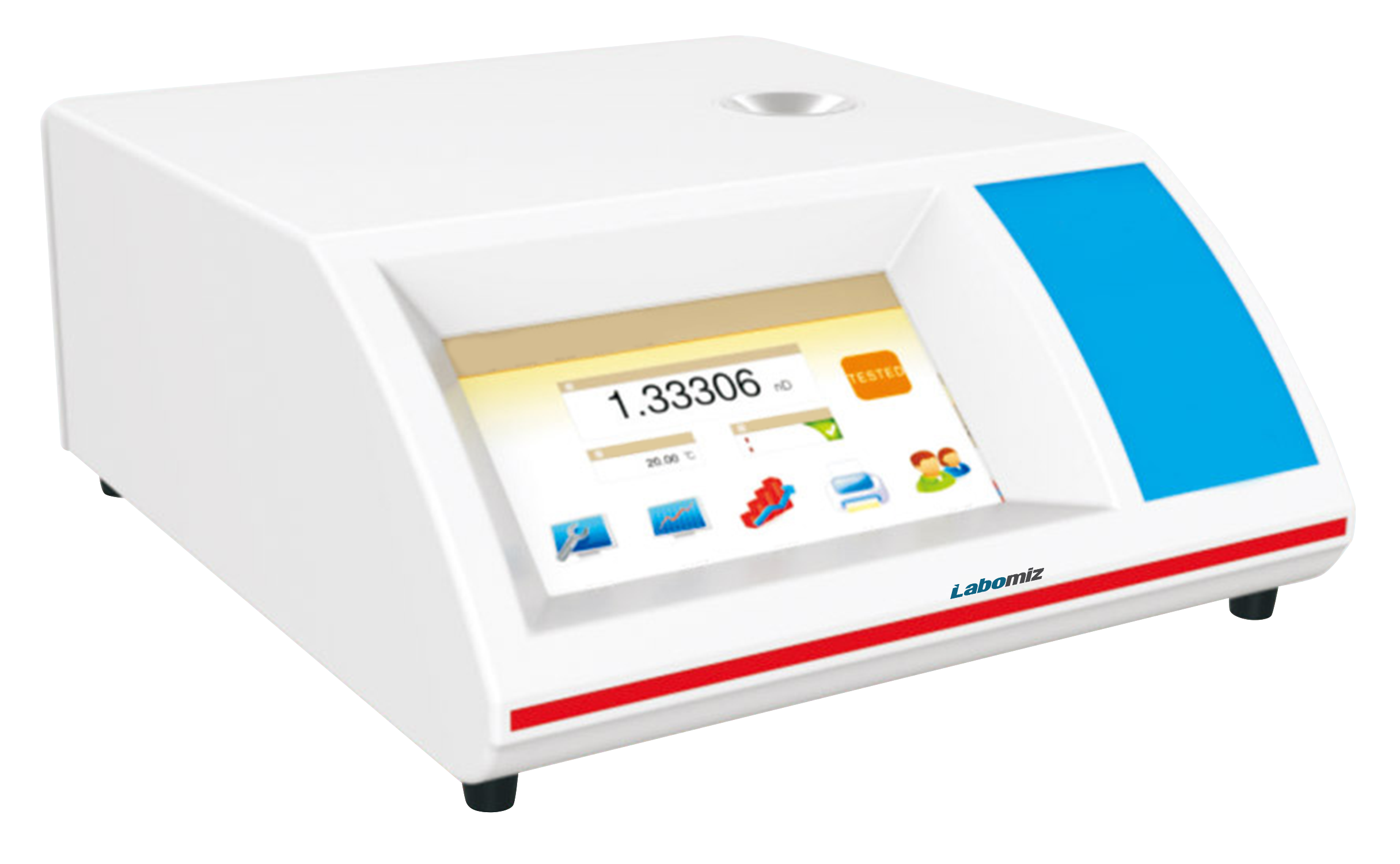

Refractometer MREF-1C is a table top device for the measurement of refraction index. It is equipped with high level sapphire prism and CCD photosensitive sensors for precise refraction and high speed signal collection. The front panel consists of the FTF touch screen for ease of visual and operational accessibility during the process of melting point determination.
Request Quote
Measuring range
1.30000 Nd ~ 1.70000 Nd
Stability of temperature control
± 0.02 ℃
Temperature control
Built-in semiconductor
Temperature control range
5 ℃ ~ 65 ℃
Sugar range (brix degrees)
0 ~ 100 %
Sugar accuracy (brix degrees)
± 0.1 %
Fine degrees
± 0.0002
Light source
LED light source
Wave length
589 nm
Edge mirror
Sapphire level
Samples pool
Stainless steel
Test method
CCD linear photosensitive
Display
FTF color touch screen
Data interface
USB RS232
Power
220 V 50 Hz
Dimensions
430 × 380 × 300 mm
Weight
4 kg
Temperature control range is 5 ? ~ 65 ?
Stability of temperature control is ± 0.02 ?
High performance sapphire prism for precise refraction
High resolution CCD photosensitive components for high speed signal collection
Semiconductor based temperature control system
FTF Touch screen for ease of operation and visual monitoring
Reliable and stable accessibility
Used in petroleum industries, pharmaceutical industries, food industries, chemical industries, sugar industries, university and analytical laboratories, relevant scientific research units, etc.
